Head Grinding Points 35# Grit for Carbide
Head Grinding Points 35# Grit for Carbide
About the product:
|
Name: |
electroplated diamond grinding points, head cylindrical diamond grinding mounted bit |
|
Material |
Steel body, diamond coated, electroplated coated |
|
Shape |
stick |
| Grit |
35# |
|

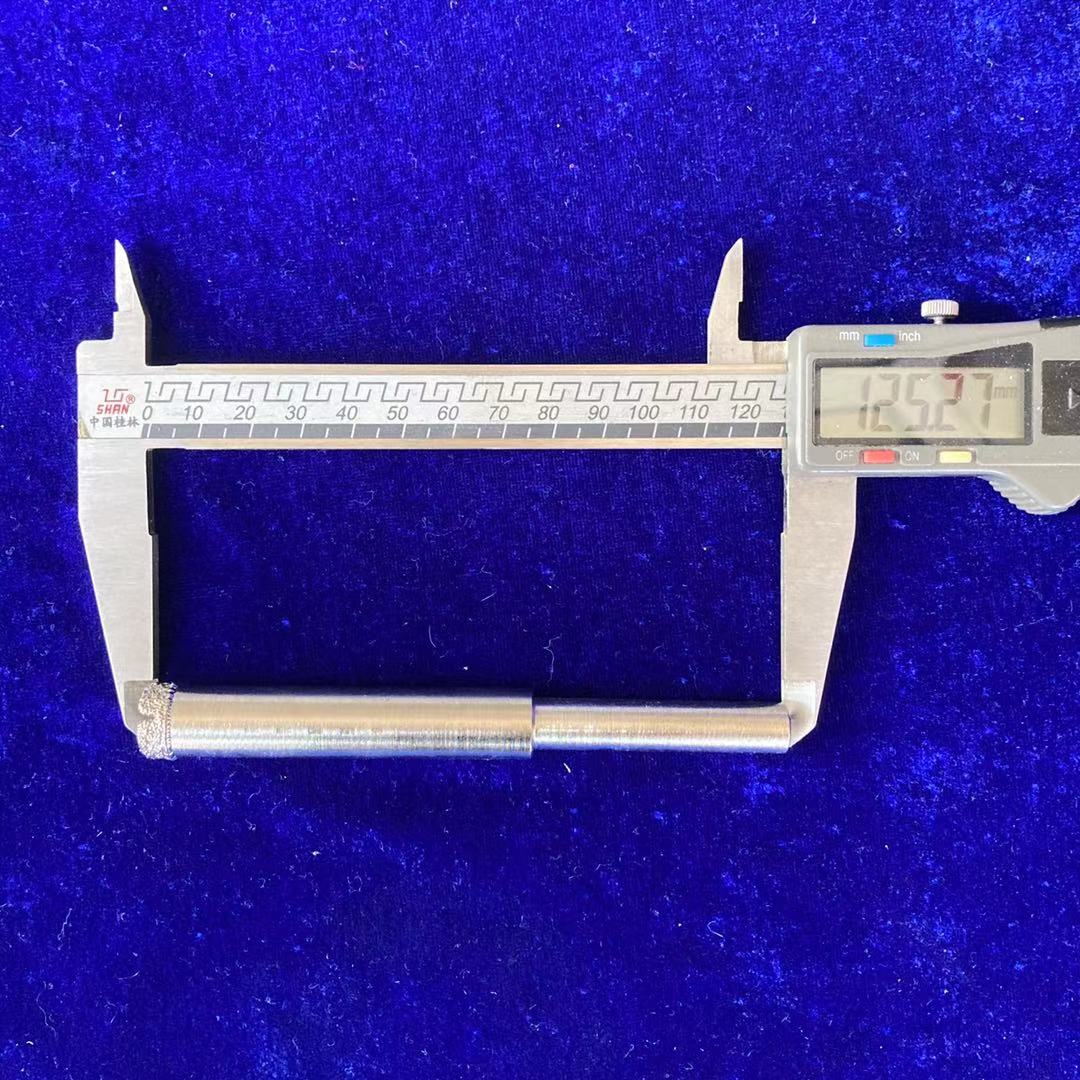

length |
125mm 5" |
|

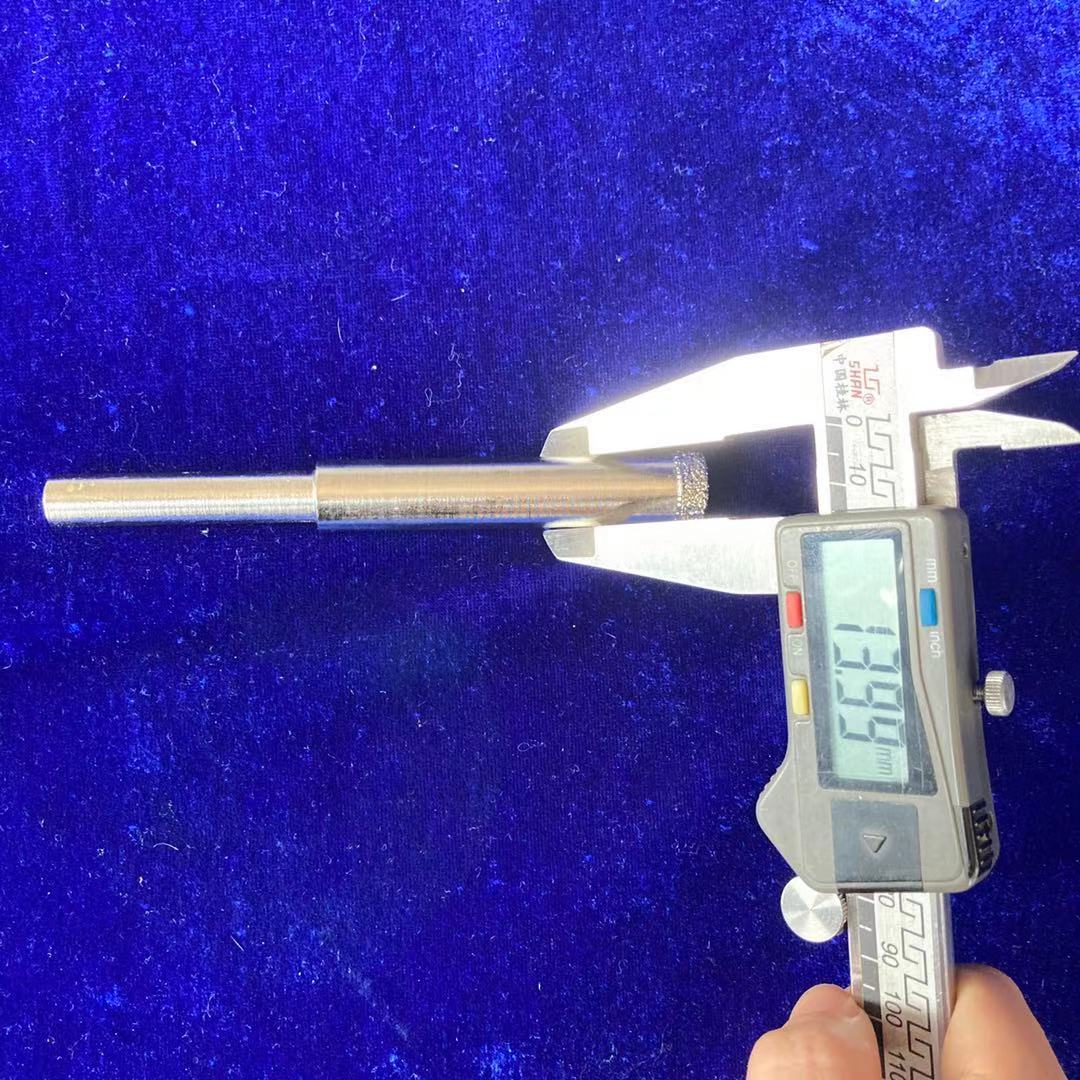

head diameter |
14mm |
|

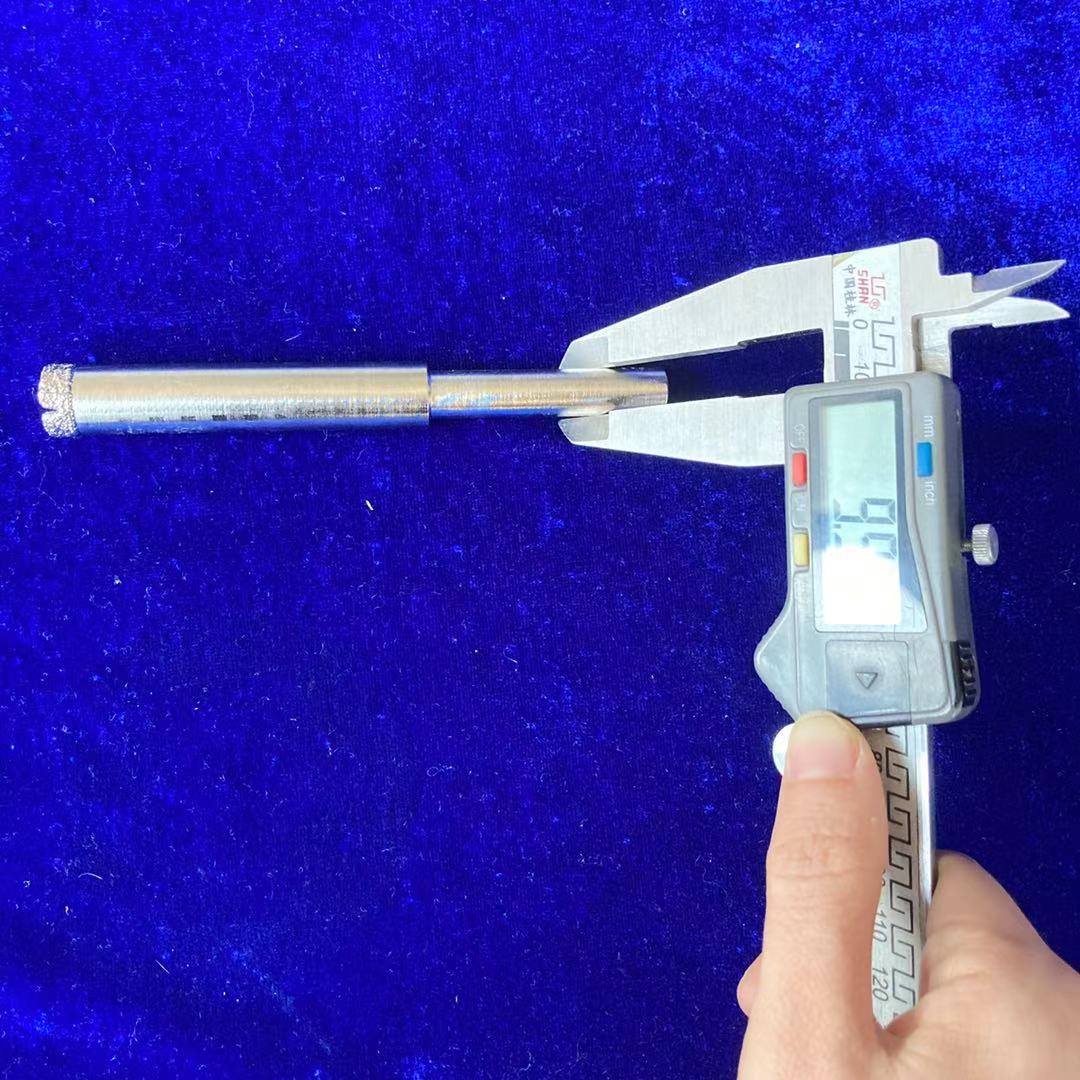

shank diameter |
10mm |
|

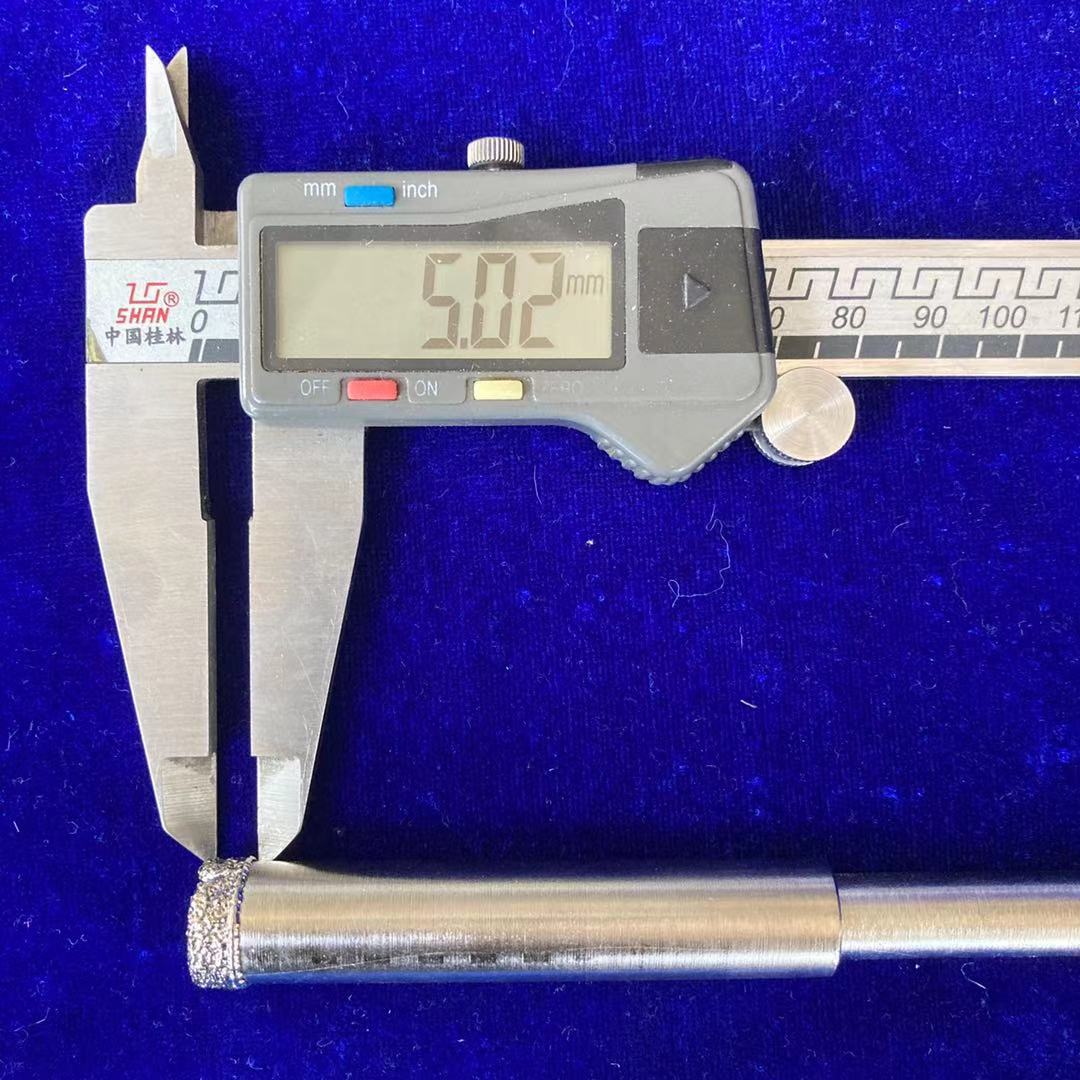

diamond working layer |
5mm |
|
Features |
abrasive particles protruded |
|
high efficiency |
|
|
less thermal damage |
|
|
Application |
carbide, stone,ceramics, glass, jade, semiconductors, and cemented carbide materials, etc. |
|
Grinding type |
Wet / dry both |

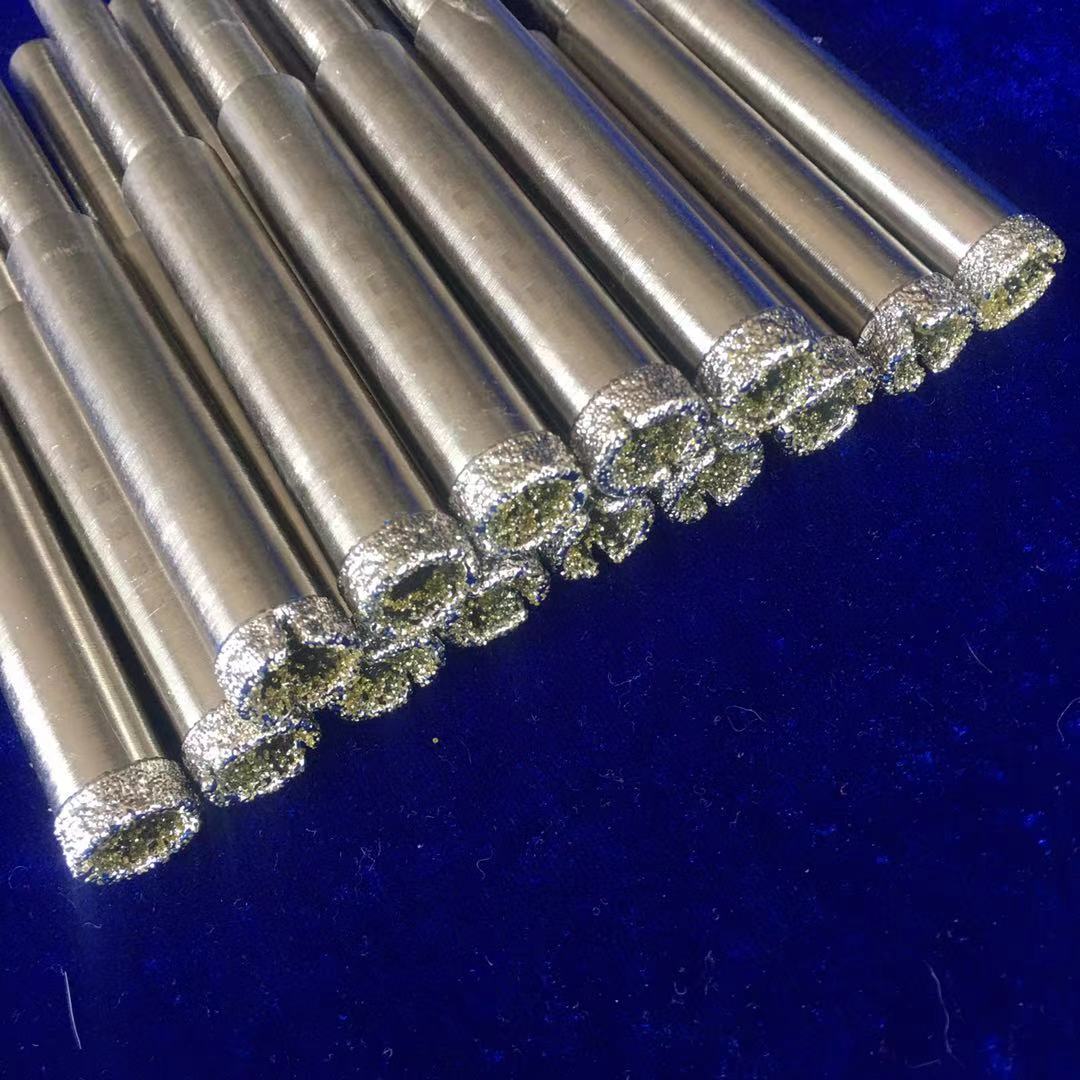

Electroplated diamond grinding sticks are made of the diamond as abrasive by electrodeposition of metal. Electroplated diamond mounted points have the diamond particles protruded from the surface, so that electroplated diamond wheels have the maximum abrasive particle exposure.
Diamond coated mounted wheel points have the advantage of :
1> suitable for carbide, stones, glass, punching;
2> with minimum heat generation, no damage to the workpiece;
Electroplated diamond grinding tools are widely used for grinding stone,ceramics, glass, jade, semiconductors, and cemented carbide materials, etc.
Diamond grinding points can be used with Dremel rotary tool,etc.
Specialties & Customed Production
Our diamond-plated grinding tools have many advantages. We can offer you electroplated diamond grinding products with aggressive bond, lower costs, high performance, and longer cycle time. We offer you excellent customized service.
If have special applications, leave us the following information:
|
shape |
size |
working layer width |
|
bond/binding agent/adhesive |
Abrasive grain |
grit designation |
And tell us the product or material you want to work on or your applications, then we can provide you the professional suggestions.
What you may concern:
1: Are you a factory?
Yes, we are the producer. Our main products are diamond tools, grinding wheels, cut-off discs, sanding belts, oil stones, mounted points, etc.
2, Can I get free samples?
Yes, within 20USD samples, we can provide for free, but the shipping cost should be covered by the customers.
3, How to confirm the quality?
We have the most experienced technicians and producers. You can send us the technical parameters of the product and we will produce according to your requirements. You can ask for a sample for free. You can have a pilot order then normal order.
4, What about quality control?
We are using the highest quality components & an efficient manufacturing process. We have the strictest QC process. We are proving a high level of service for customers and distributors. We are trying to nail down the quality complaint to zero. We will make you an enjoyable experience working with us.
