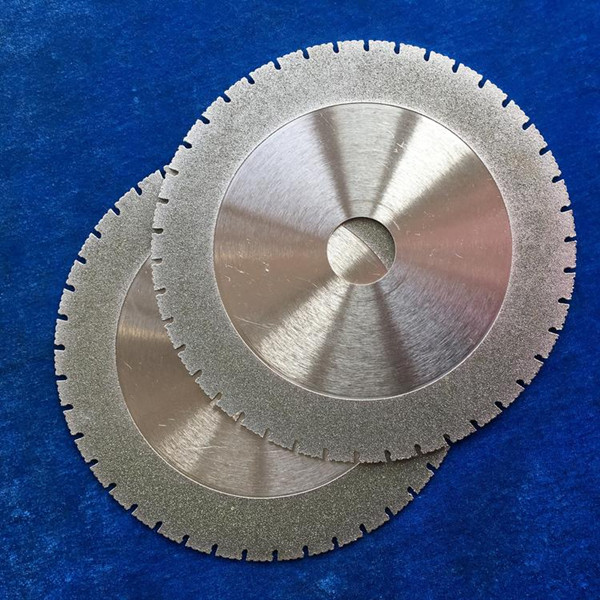

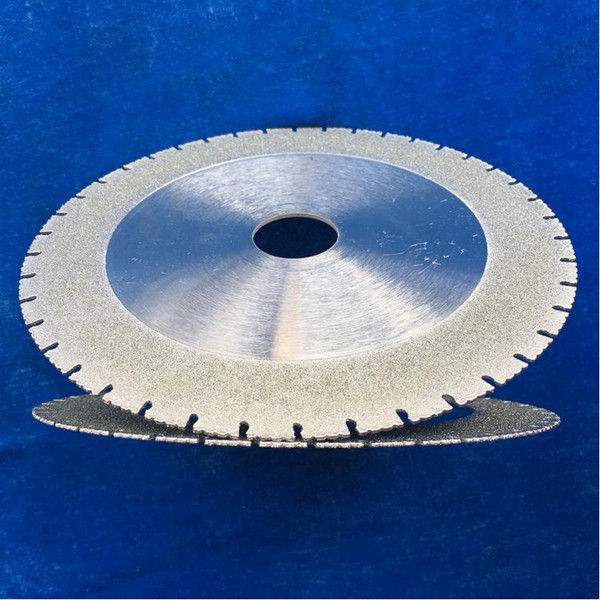

Electroplated Diamond Saw Blade with Teeth
Electroplated Diamond Saw Blade with Teeth
About the product:
|
Name: |
diamond cutting disc,electroplated diamond cutting wheel with teeth |
|
Material |
Steel body, diamond coated, electroplated |
|
Shape |
centreless, ultra thin, with peripheral teeth |
| Grit |
140/170# |
|
Wheel diameter |
230mm 9inch diameter |
|
Hole thread size |
32mm 1 1/4inch arbor |
|
Overall thickness |
2mm |
|
Speed |
6800rpm, 80m/s |
|
Features |
coarse, medium, fine grit available |
|
High quality |
|
|
High proficiency, low cost, mass production fast and efficient |
|
|
Application |
stone, ceramics, shells, glass, jewelry, jade, semiconductor materials etc. |
|
Grinding type |
Wet / dry both |
This electroplated diamond cutting wheel is made of diamond as abrasive by electrodeposition of metal . The main working method of electroplated diamond saw blade is grinding, nesting, edge grinding, punching, carving, polishing and so on.
Electroplated diamond cutting wheels are used for semiconducting material, marble ,ceramics, optical glass and so on.
Diamond cutting tools can be used with Dremel rotary tool, angle grinder, bench grinder etc.
Specialties & Customed Production
We can offer you viarious diamond grinding tools with different grit, differnt diamond concentration, and differnt formula based on your applications.
If have special applications, leave us the following information:
|
shape |
size |
working layer width |
| girt |
dry /wet grinding |
|
And tell us the product or material you want to work on or your applications, then we can provide you the professional suggestions.
What you may concern:
1: Are you a factory?
Yes, we are the producer. Our main products are diamond tools, grinding wheels, cut-off discs, sanding belts, oil stones, mounted points etc.
2, Can I get free samples?
Yes, within 20USD samples, we can provide for free, but the shipment cost should be covered by the customers.
3, How to confirm the quality ?
We have the most experienced technicians and producers. You can send us the technical parameters of the product and we will produce according to your requirements. You can ask for sample for free.You can have pilot order then nomal order.
4, What about the quality controlling?
We are using the highest quality components & efficient manufacturing process.We have the strictest QC process. We are proving a high level of service for customers and distributors.We are trying to nail down the quality complaint to zero. We will make you a enjoyable experience working with us.
