Ultra-thin Diamond Saw Blade for Cutting Glass Beads
Ultra-thin Diamond Saw Blade for Cutting Glass Beads
About the product:
|
Name: |
electroplated diamond saw blade, electroplated diamond grinding wheel |
|
Material |
Steel body, diamond coated, electroplated coated |
|
Shape |
centreless, ultra thin |
|
Grit |
400# |
|
Wheel diameter |
76mm 3inch |
|
Hole thread size |
40mm 1 1/2inch |
|
Overall thickness |
0.3mm |
|
diamond working layer |
2.6mm |
|
Speed |
18000rpm, |
|
Features |
abrasive particles protruded |
|
faster cutting action |
|
|
less thermal damage |
|
|
low cost |
|
|
Application |
etc. |
|
Grinding type |
Wet / dry both |

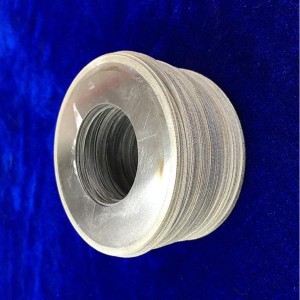

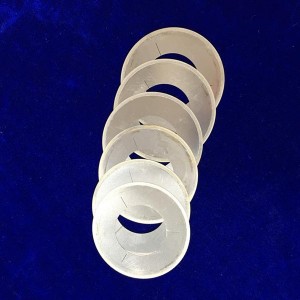

This ultra thin small size diamond cutting disc is designed and produced for glass beads.
Electroplated diamond cutting disc is made of diamond as abrasive by electrodeposition of metal. Electroplated diamond tools have the diamond particles protruded from the surface, so that electroplated diamond wheels have the maximum abrasive particle exposure.
Electroplated diamond saw blade has the advantage of :
1> suitable for manufacturing thin thickness discs, suitalbe for fine cutting;
2> providing a free ,faster cutting action ;
3> with minimum heat generation, no damage to work piece;
Electroplated diamond cutting wheel tools is widely used for cutting the stone,ceramics, glass, jade, semiconductors, and cemented carbide materials, etc.
Specialties & Customed Production
Our diamond palted wheels have many advantages. We can offer you electroplated daimond wheels with aggresive bond, lower costs, high performance and longer cycle time. We offer you excerllent customized service.
If have special applications, leave us the following information:
|
shape |
size |
working layer width |
| grit designation |
dry /wet grinding |
|
And tell us the product or material you want to work on or your applications, then we can provide you the professional suggestions.
